Front Wheel Hub and Steering Knuckle Components

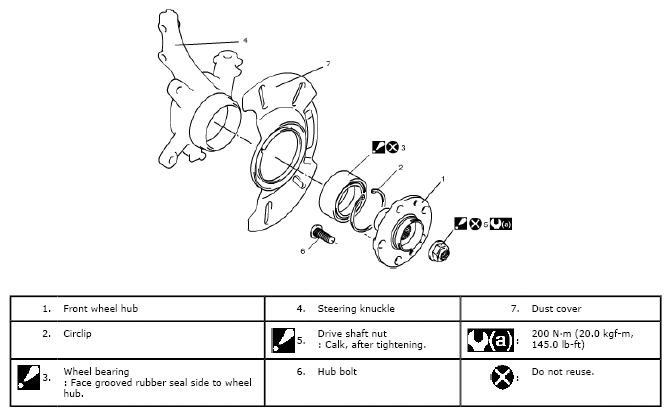

Fig 1: Front Wheel Hub And Steering Knuckle Replacement Components With Torque Specifications
G04847152Courtesy of SUZUKI OF AMERICA CORP.
