Front Suspension Construction

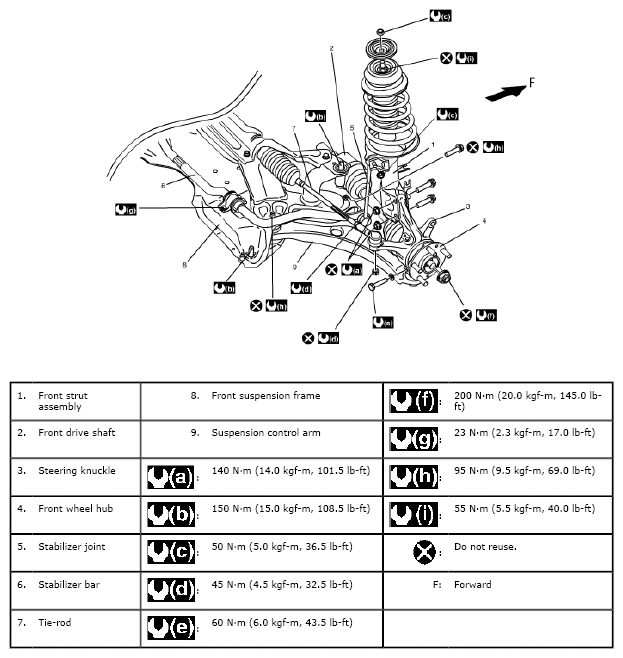

Fig 1: Front Suspension Replacement Components & Torque Specification
G04847135Courtesy of SUZUKI OF AMERICA CORP.
