Tightening Torque Specifications

NOTE: The specified tightening torque is also described in:

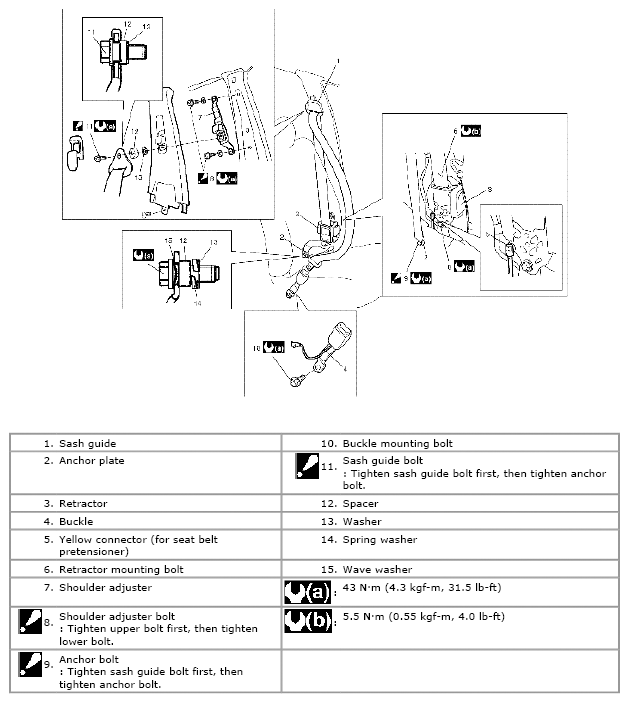

Figure
and

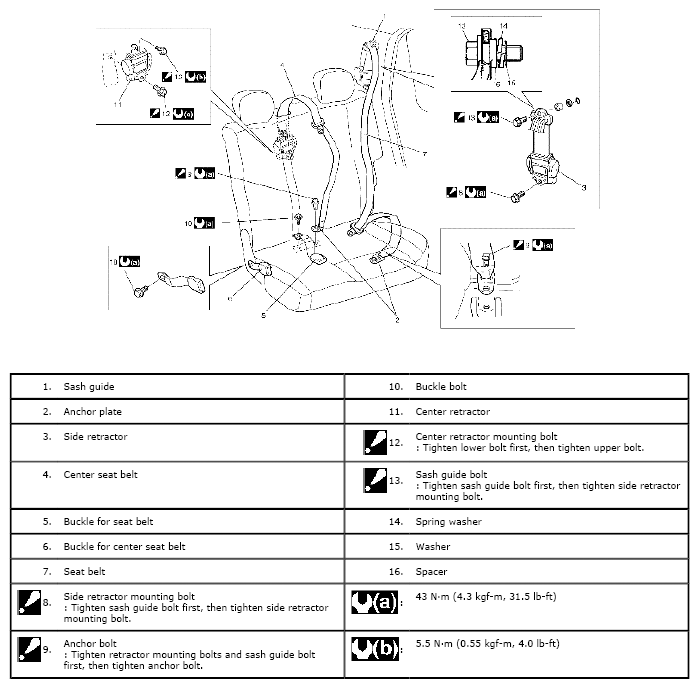

Figure
.

Reference:

For the tightening torque of fasteners not specified in this article, refer to FASTENERS INFORMATION .
