Transmission Control Module (TCM) Wiring Diagram: Notes

WARNING: This page is about a different variant/trim than selected.

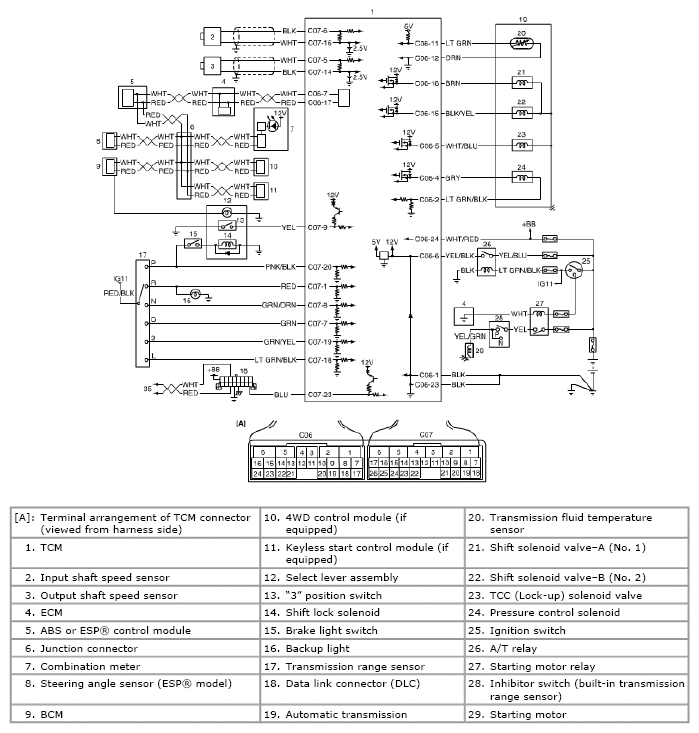

Fig 1: Identifying Transmission Control Module (TCM) Wiring Diagram
G04847718Courtesy of SUZUKI OF AMERICA CORP.
