Transaxle Rear Cover Components
WARNING:
This page is about a different variant/trim than selected.

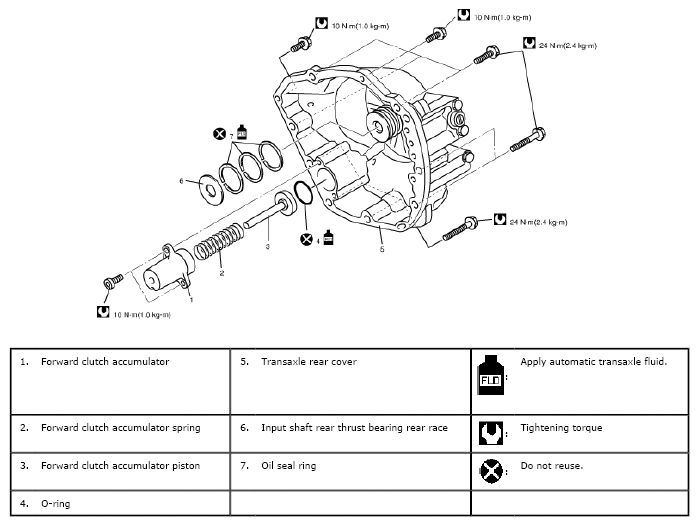

Fig 1: Exploded View Of Transaxle Rear Cover Components (With Torque Specifications)
Courtesy of SUZUKI OF AMERICA CORP.
