Shift Lock Solenoid Manual Release

WARNING: This page is about a different variant/trim than selected.

Remove plug cap of select lever and push down shift lock solenoid valve release plate (1) inside of plug hole with a slotted head screwdriver or the like. Then, select lever can be moved from "P" range position to another range even without depressing the brake pedal. (To shift select lever from "P" range to any other position, turn ignition switch to ACC or ON position.)

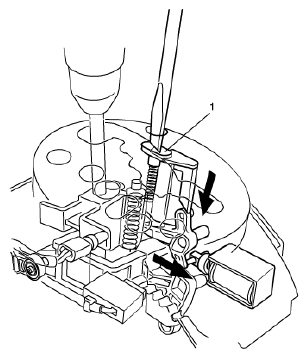

Fig 1: Pushing Down Shift Lock Solenoid Valve
G04847713Courtesy of SUZUKI OF AMERICA CORP.
