A/T Description: 4WD

WARNING: This page is about a different variant/trim than selected.

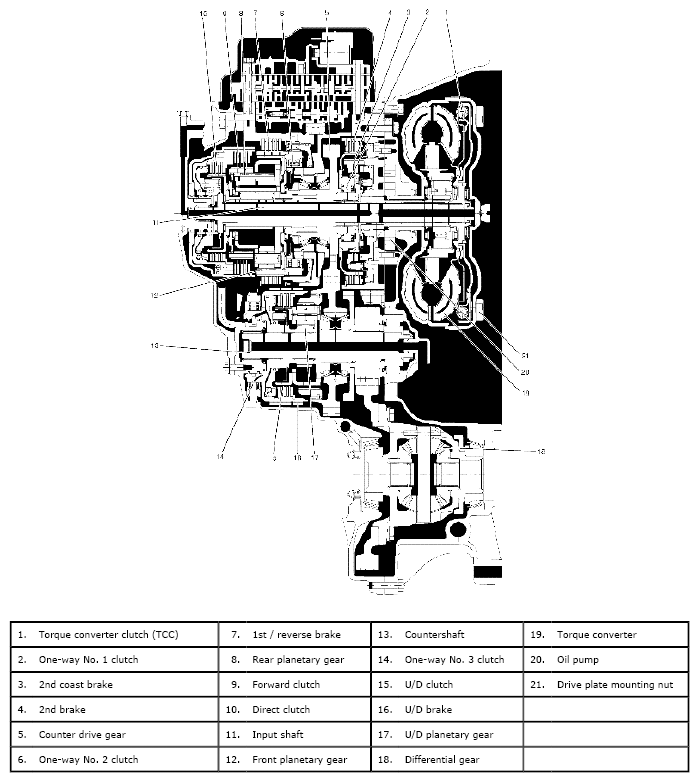

Fig 1: Identifying Sectional View Of Automatic Transaxle (4WD)
G04847711Courtesy of SUZUKI OF AMERICA CORP.
