Cylinder Head and Valve Train Components Installation

WARNING: This page is about a different car, the 2006 Suzuki Verona. However, it is still accessible from the selected car via links, so may be relevant.
  1. Installation should follow the removal procedure in the reverse order.
  2. Install the intake and exhaust valves, valve spring retainer, valve spring, valve key, and valve stem using the valve spring compressor 09916-14510/valve spring compressor attachment 09916-48210.
    Fig 1: Identifying Valve Spring
    G04719015Courtesy of SUZUKI OF AMERICA CORP.
  3. Make sure the correct positions for the intake and exhaust valves. The diameter of the intake valves is larger than the diameter of the exhaust valves.
    Fig 2: Identifying Diameter Of Intake And Exhaust Valves
    G04719016Courtesy of SUZUKI OF AMERICA CORP.
  4. Install the rocker arms.
  5. Install the rocker arm shafts using the rocker arm shaft installer/remover DW110-160.
    NOTE: Front rocker arm shaft which will be installed to the timing chain side can be identified by the hole for the rocker arm spring.
    Fig 3: Identifying Rocker Arm Shafts
    G04719017Courtesy of SUZUKI OF AMERICA CORP.
  6. Apply the sealant to the rocker arm shaft plugs.
  7. Install the rocker arm shaft plugs.

    Tighten:

    Tighten the rocker arm shaft plug to 35 - 45 N.m (26 - 33 lb-ft).

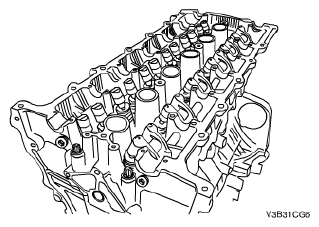

    Fig 4: Identifying Rocker Arm Shaft Plugs
    G04719018Courtesy of SUZUKI OF AMERICA CORP.
  8. Position the intake and exhaust camshafts.
    NOTE: The intake camshaft can be identified by the groove near the cam sprocket flange. The exhaust camshaft has no groove.
  9. Install the camshaft caps in the sequence shown.
    NOTE: Make sure the engraved position numbers on the camshaft caps are not mixed up. Camshaft caps should follow the numeric order when installing, intake camshaft caps 1-3-5-7-9-11-13 and exhaust camshaft caps 2-4-6-8-10-12-14.

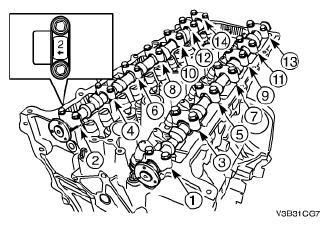

    Fig 5: Identifying Intake And Exhaust Camshafts Position
    G04719019Courtesy of SUZUKI OF AMERICA CORP.
  10. Tighten the camshaft cap bolts in the sequence shown.

    Tighten:

    Tighten the camshaft cap bolts to 10 - 14 N.m (89 - 124 lb-in.).

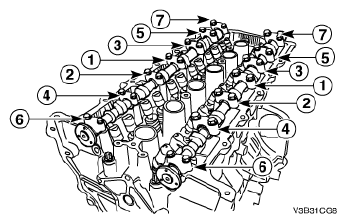

    Fig 6: Identifying Tightening Sequence For Camshaft Cap Bolts
    G04719020Courtesy of SUZUKI OF AMERICA CORP.
  11. Install the cam sprockets.
    NOTE: Intake and exhaust cam sprockets are identified by the engraved marks, "IN" for intake and "EX" for exhaust respectively.

    Tighten:

    Tighten the cam sprocket bolts to 18 - 22 N.m (13 - 16 lb-ft).

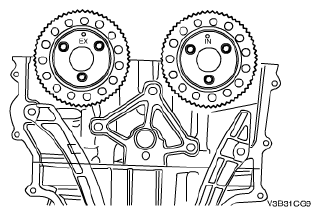

    Fig 7: Identifying Cam Sprockets
    G04719021Courtesy of SUZUKI OF AMERICA CORP.
