Cylinder Head Cover Removal

WARNING: This page is about a different car, the 2006 Suzuki Verona. However, it is still accessible from the selected car via links, so may be relevant.

Remove the fuel pump fuse.
Start the engine and repeat cranking until the remaining fuel in the fuel line is all consumed.
Disconnect the negative battery cable.
Drain the engine coolant. Refer to DRAINING AND REFILLING THE COOLING SYSTEM .
Remove the intake manifold. Refer to Intake Manifold Removal .

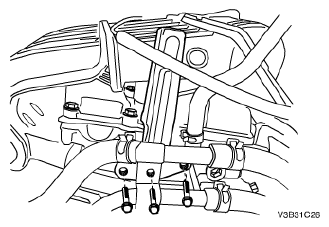

Fig 1: Removing/Installing Intake Manifold Retaining Nuts And Bolts
Courtesy of SUZUKI OF AMERICA CORP.
Remove the coolant reservoir. Refer toSURGE TANK REMOVAL .
Remove the front support bracket retaining bolt and the front support bracket.

Fig 2: Removing/Installing Front Support Bracket Retaining Bolt
Courtesy of SUZUKI OF AMERICA CORP.
Remove the air filter housing.

Fig 3: Removing/Installing Air Filter Housing Retaining Bolts
Courtesy of SUZUKI OF AMERICA CORP.
Remove the rear support bracket retaining bolts and the rear support bracket.
Remove the ignition coils. Refer to IGNITION COIL REMOVAL .

Fig 4: Removing/Installing Rear Support Bracket Retaining Bolts
Courtesy of SUZUKI OF AMERICA CORP.
Remove the cylinder head cover bolts and the cylinder head cover.
Remove the cylinder head cover gasket.

Fig 5: Removing/Installing Cylinder Head Cover Bolts
Courtesy of SUZUKI OF AMERICA CORP.
