Instrument Cluster Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the instrument cluster trim panel. Refer to "INSTRUMENT CLUSTER TRIM PANEL REMOVAL AND INSTALLATION :".
  3. Remove the screws and the instrument cluster.
  4. Disconnect the electrical connectors.

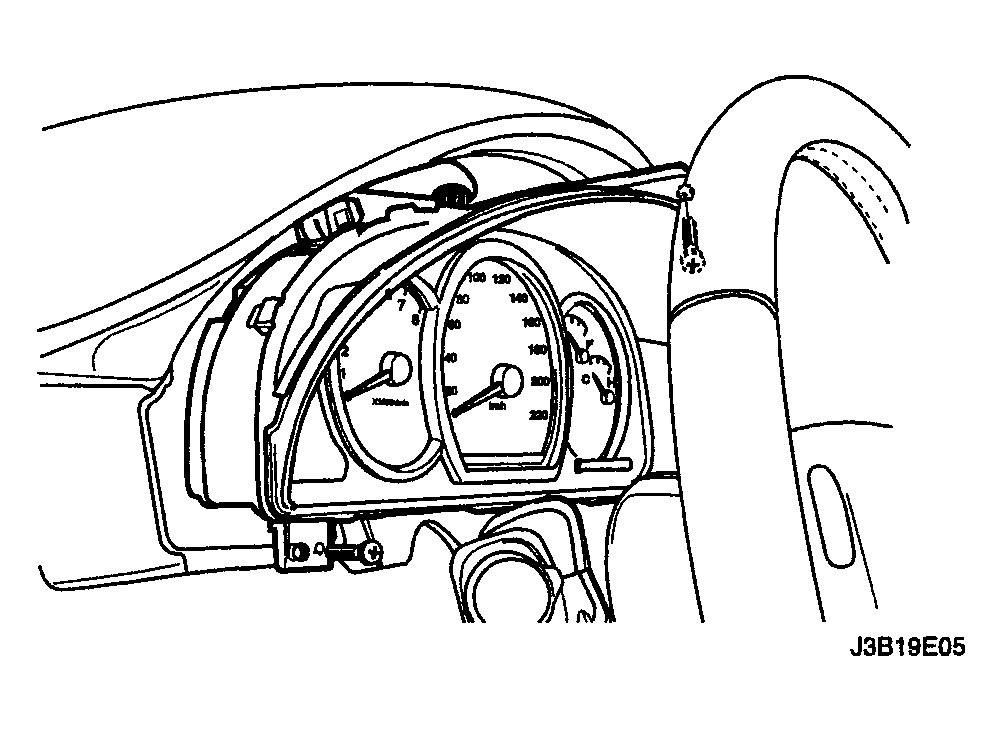

    Fig 1: Removing Instrument Cluster
    G04104413Courtesy of SUZUKI OF AMERICA CORP.
