Instrument Cluster Removal and Installation: Installation

WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connectors.
  2. Install the instrument cluster with the screws.

    Tighten

    Tighten the instrument cluster screw to 4 N.m (35 lb-in).

  3. Install the instrument cluster trim panel.
  4. Connect the negative battery cable.

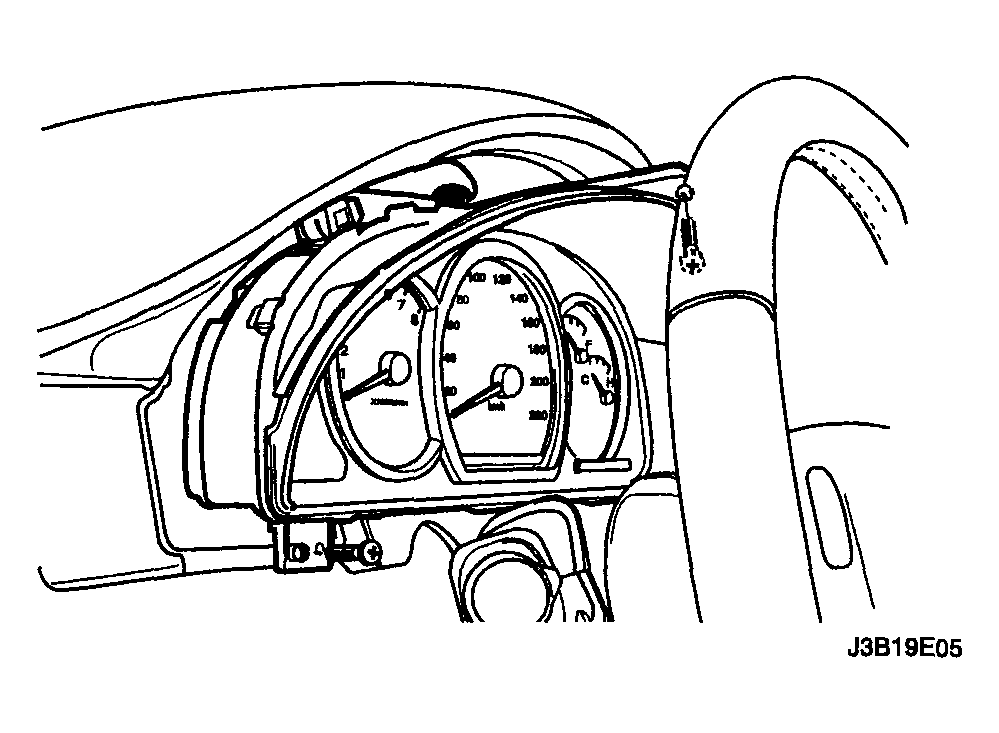

    Fig 1: Installing Instrument Cluster
    G04104414Courtesy of SUZUKI OF AMERICA CORP.
