Instrument Cluster Dimmer Switch Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument cluster dimmer switch assembly.
  2. Disconnect the electrical connectors.

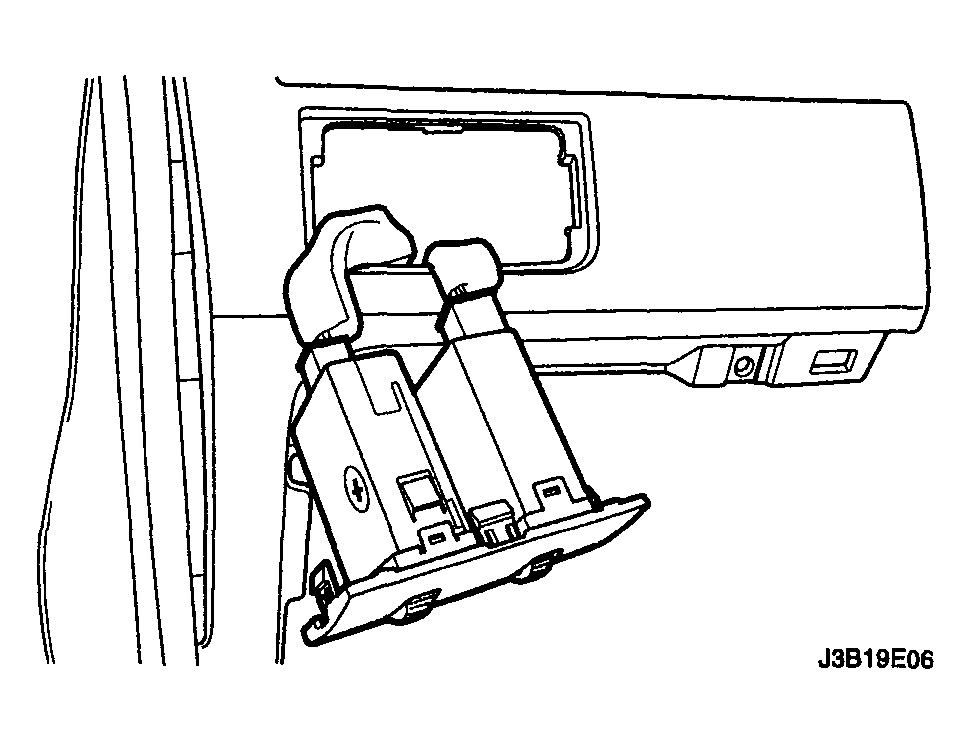

    Fig 1: Removing Instrument Cluster Dimmer Switch Assembly
    G04104415Courtesy of SUZUKI OF AMERICA CORP.
