Instrument Cluster Dimmer Switch Removal and Installation: Installation

WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connectors.
  2. Install the instrument cluster dimmer switch assembly.

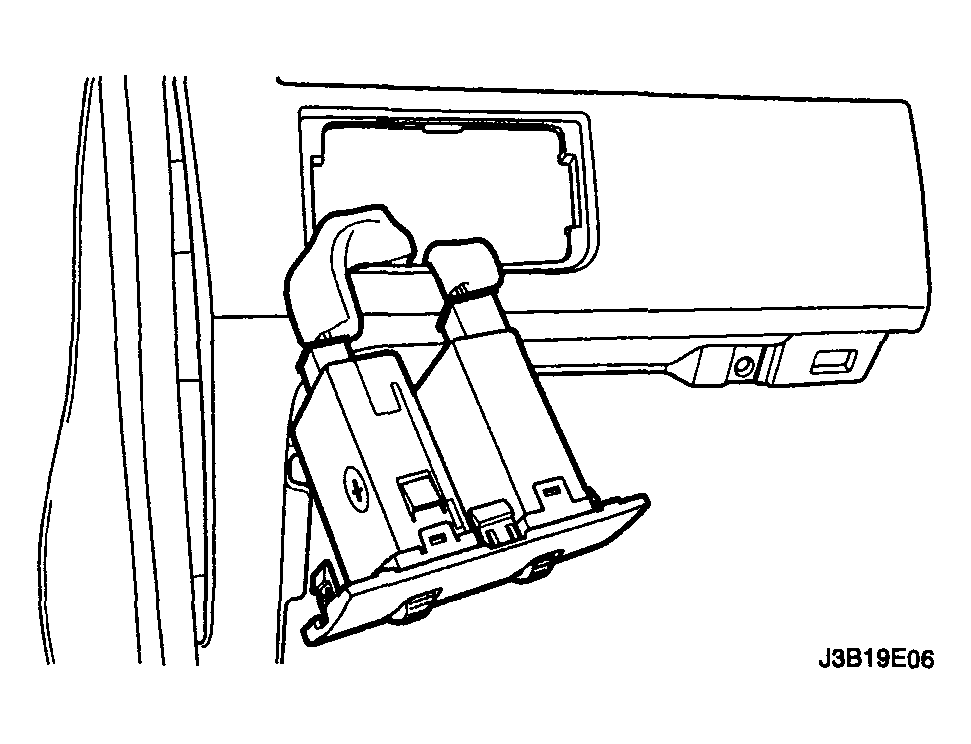

    Fig 1: Installing Instrument Cluster Dimmer Switch Assembly
    G04104416Courtesy of SUZUKI OF AMERICA CORP.
