Cigar Lighter Removal and Installation: Installation

WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the cigar lighter housing to the instrument panel.
  2. Install the cigar lighter in the cigar lighter housing.
  3. Connect the cigar lighter and ashtray lamp electrical connector.
  4. Install the instrument panel center molding.

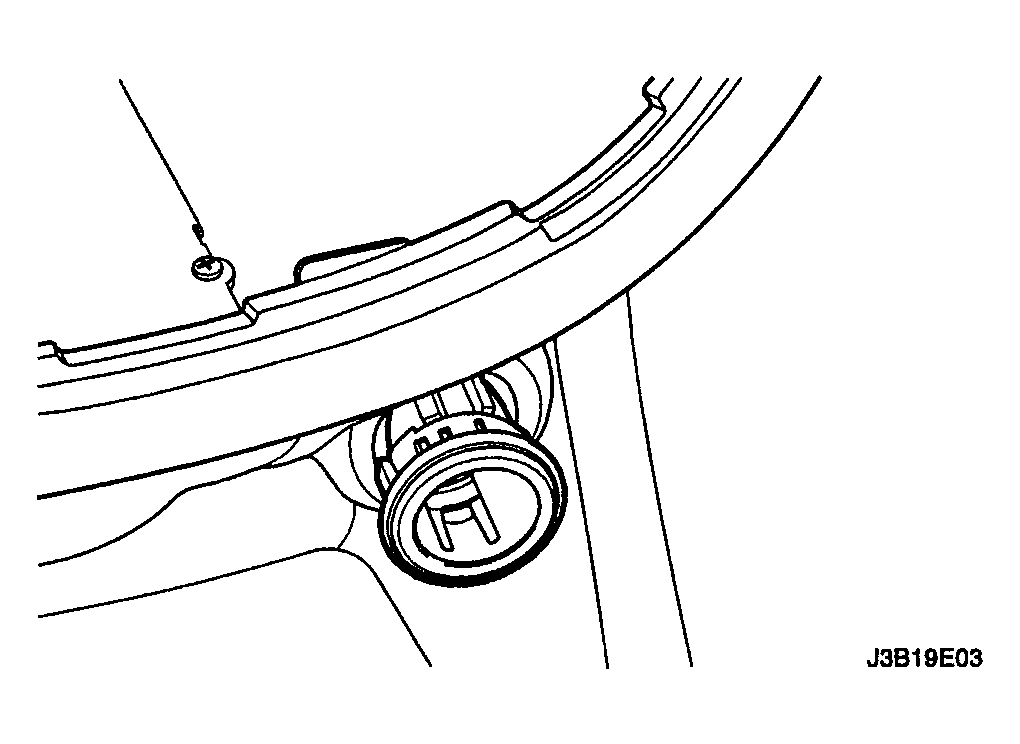

    Fig 1: Installing Cigar Lighter
    G04104402Courtesy of SUZUKI OF AMERICA CORP.
