Center Molding Removal and Installation: Installation

WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the mode control cable from the mode door.
  2. Connect the electrical connector.
  3. Install the center molding.

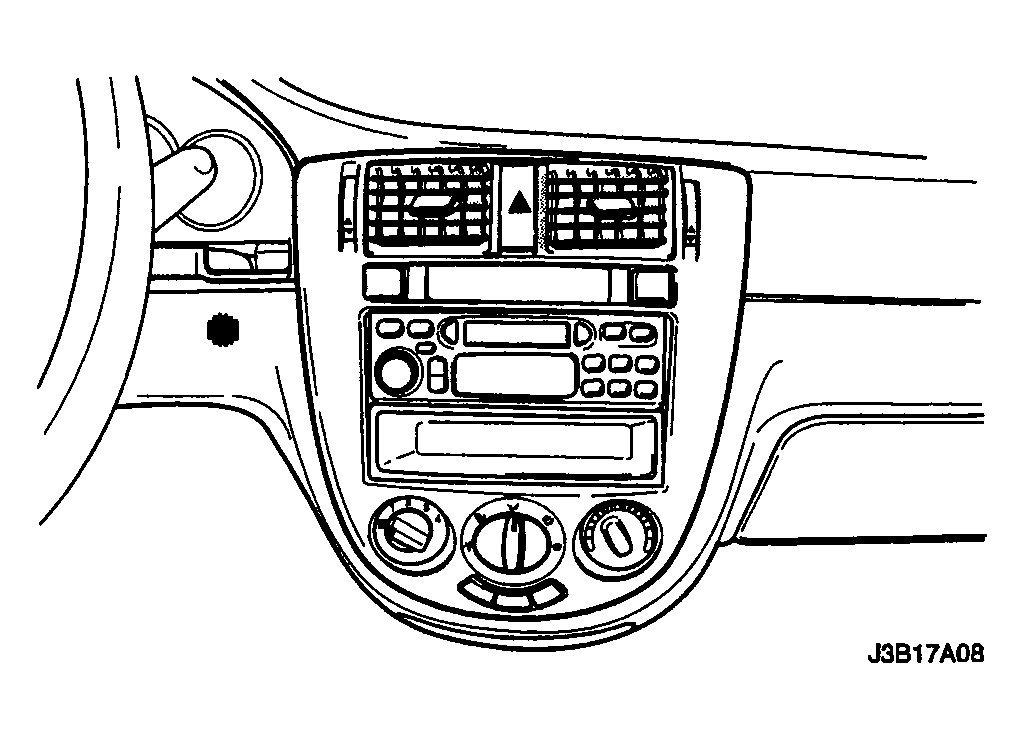

    Fig 1: Installing Center Molding
    G04104394Courtesy of SUZUKI OF AMERICA CORP.
