Stereo Cassette AM / FM Radio Removal and Installation: Installation
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 Suzuki Reno, 2008 Suzuki Forenza, 2007 Suzuki Reno, 2007 Suzuki Forenza, and 2006 Suzuki Reno. However, it is still accessible from the selected car via links, so may be relevant.
- Connect the audio system electrical connectors.

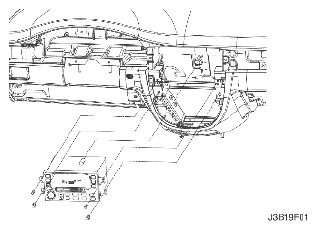

- Install the audio system with the screws.
Tighten:
Tighten the audio system screws to 4 N.m (35 lb-in).
- Install the center molding. Refer to CENTER MOLDING REMOVAL AND INSTALLATION .
- Connect the negative battery cable.
