Door Speakers Removal and Installation: Installation

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 Suzuki Reno, 2008 Suzuki Forenza, 2007 Suzuki Reno, 2007 Suzuki Forenza, and 2006 Suzuki Reno. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Dissimilar metals in direct contact with each other may corrode rapidly. Make sure to use the correct fasteners to prevent premature corrosion.
  1. Install the door speaker with the screws.

    Tighten:

    Tighten the door speaker screws to 2 N.m (18 lb-in).

  2. Connect the electrical connector.
  3. Install the door trim panel. Refer to FRONT DOOR TRIM PANEL REMOVAL AND INSTALLATION or REAR DOOR TRIM PANEL REMOVAL AND INSTALLATION .
  4. Connect the negative battery cable.

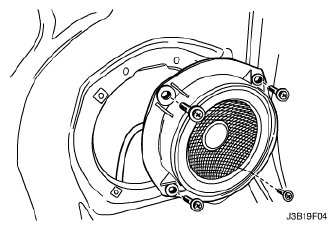

    Fig 1: Identifying Screws And Door Speaker
    G04718545Courtesy of SUZUKI OF AMERICA CORP.
