Rear Bumper Fascia Removal and Installation (For NOTCHBACK Model): Installation

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 Suzuki Reno, 2008 Suzuki Forenza, 2007 Suzuki Reno, 2007 Suzuki Forenza, and 2006 Suzuki Reno. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear bumper fascia with the bolts and the screws.
    Fig 1: Identifying Rear Bumper Fascia With Bolts And Screws
    G04718487Courtesy of SUZUKI OF AMERICA CORP.
  2. Install the bolts and the nuts in the luggage compartment.
  3. Install the luggage compartment rear quarter trim panels. Refer to LUGGAGE COMPARTMENT WHEELHOUSE TRIM PANEL REMOVAL AND INSTALLATION .

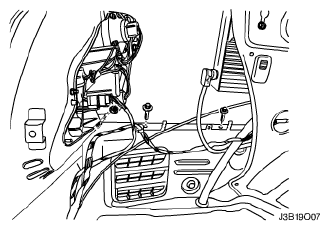

    Fig 2: Identifying Bolts And Nuts In Luggage Compartment
    G04718486Courtesy of SUZUKI OF AMERICA CORP.
  4. Install the screws behind the fascia.
  5. Install the splash shields with the screws.
  6. Install the mud guards with the screws.
  7. Install the rear wheels. Refer to WHEEL REMOVAL AND INSTALLATION .
    Fig 3: Identifying Mud Guards & Screws
    G04718485Courtesy of SUZUKI OF AMERICA CORP.
