Front Bumper Impact Bar Removal and Installation: Installation

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 Suzuki Reno, 2008 Suzuki Forenza, 2007 Suzuki Reno, 2007 Suzuki Forenza, and 2006 Suzuki Reno. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Dissimilar metals in direct contact with each other may corrode rapidly. Make sure to use the correct fasteners to prevent premature corrosion.
  1. Install the front impact bar with the bolts.

    Tighten:

    Tighten the front impact bar bolts to 39 N.m (29 lb-ft).

  2. Install the front bumper energy absorber. Refer to Front Bumper Energy Absorber Removal and Installation .
  3. Install the front bumper fascia. Refer to Front Bumper Fascia Removal and Installation .
  4. Connect the electrical connector.

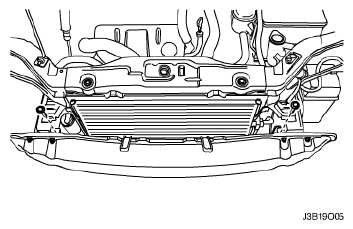

    Fig 1: Identifying Front Impact Bar & Bolts
    G04718483Courtesy of SUZUKI OF AMERICA CORP.
