Front Bumper Fascia Removal and Installation: Installation

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 Suzuki Reno, 2008 Suzuki Forenza, 2007 Suzuki Reno, 2007 Suzuki Forenza, and 2006 Suzuki Reno. However, it is still accessible from the selected car via links, so may be relevant.

Install the front bumper fascia.
Install the upper fascia clips.

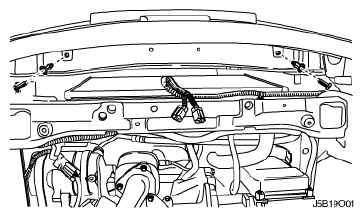

Fig 1: Identifying Front Bumper Fascia
Courtesy of SUZUKI OF AMERICA CORP.
Install the lower fascia clips.

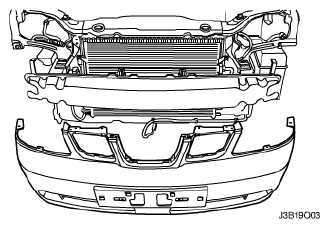

Fig 2: Identifying Lower Fascia Clips
Courtesy of SUZUKI OF AMERICA CORP.
Install the fender-to-fascia bolts and the screws.
Tighten:

Tighten the fender-to-fascia bolts to 10 N.m (89 lb-in).

Tighten the fender-to-fascia screws to 2 N.m (18 lb-in).
Install the headlamps and the fog lamps. Refer to FRONT FOG LAMPS REMOVAL AND INSTALLATION , HEADLAMP ASSEMBLY REMOVAL AND INSTALLATION (FOR NOTCHBACK AND STATION WAGON MODEL) and HEADLAMP ASSEMBLY REMOVAL AND INSTALLATION (FOR HATCHBACK MODEL) .
Install the front wheel well splash shields. Refer to FRONT WHEEL WELL SPLASH SHIELD REMOVAL AND INSTALLATION .
Connect the negative battery cable.

Fig 3: Identifying Fender-To-Fascia Bolts
Courtesy of SUZUKI OF AMERICA CORP.
