Front Wheel Well Splash Shield Removal and Installation: Installation
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 Suzuki Reno, 2008 Suzuki Forenza, 2007 Suzuki Reno, 2007 Suzuki Forenza, and 2006 Suzuki Reno. However, it is still accessible from the selected car via links, so may be relevant.

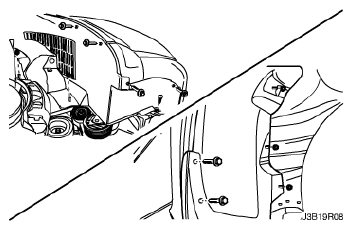

- Install the screws and the front wheel well splash shield.
Tighten:
Tighten the front wheel well splash shield screws to 2 N.m (18 lb-in).
- Install the front mud guard. Refer to MUD GUARDS REMOVAL AND INSTALLATION .
- Install the front wheel. Refer to WHEEL REMOVAL AND INSTALLATION .
- Lower the vehicle.
