Fender Removal and Installation: Installation

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 Suzuki Reno, 2008 Suzuki Forenza, 2007 Suzuki Reno, 2007 Suzuki Forenza, and 2006 Suzuki Reno. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Dissimilar metals in direct contact with each other may corrode rapidly. Make sure to use the correct fasteners to prevent premature corrosion.

Install the fender with the upper fender bolts.
Tighten:

Tighten the upper fender bolts to 10 N.m (89 lb-in).

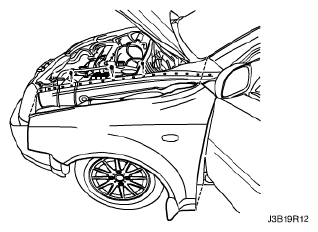

Fig 1: Identifying Upper Fender & Bolts
Courtesy of SUZUKI OF AMERICA CORP.
Reposition the cowl vent grille weatherstrip to its original position.
Install the bolt at the base of the A-pillar.
Tighten:

Tighten the A-pillar fender bolt to 10 N.m (89 lb-in).

Fig 2: Identifying A-Pillar Fender & Bolt
Courtesy of SUZUKI OF AMERICA CORP.
Install the bolts at the base of the fender.
Tighten:

Tighten the lower fender bolts to 10 N.m (89 lb-in).
Install the front fender bolts behind the front fascia.
Tighten:

Tighten the front fender bolts to 10 N.m (89 lb-in).

Fig 3: Identifying Front Fascia
Courtesy of SUZUKI OF AMERICA CORP.
Install the front fascia to its original position.
Install the bolts securing the front fascia to the fender.
Tighten:

Tighten the front fascia-to-fender bolts to 2.5 N.m (22 lb-in).
Install the front headlamp to its original position.
Install the front wheel well splash shield. Refer to Front Wheel Well Splash Shield Removal and Installation .

Fig 4: Identifying Front Fascia To Fender Bolts
Courtesy of SUZUKI OF AMERICA CORP.
