Front Door Trim Panel Removal and Installation: Removal

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 Suzuki Reno, 2008 Suzuki Forenza, 2007 Suzuki Reno, 2007 Suzuki Forenza, and 2006 Suzuki Reno. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lower the front window.
  2. Remove the window frame inner cover.
  3. Remove the front door escutcheon.

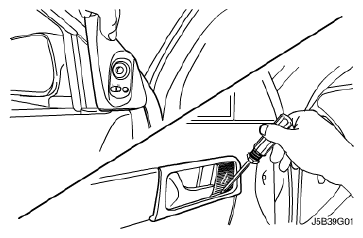

    Fig 1: Identifying Front Door Escutcheon
    G04718317Courtesy of SUZUKI OF AMERICA CORP.
  4. Remove the rear deck lid remote switch and the power window/mirror control switch.
    Fig 2: Identifying Rear Deck Lid Remote Switch And Power Window/Mirror Control Switch
    G04718318Courtesy of SUZUKI OF AMERICA CORP.
  5. Disconnect the electrical connectors.
  6. Remove the door trim panel screws.
  7. Pry off the trim panel using the trim remover KM-475-B.
  8. Disconnect the status display connector.
