Driver's Side Knee Bolster Removal and Installation: Installation

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 Suzuki Reno, 2008 Suzuki Forenza, 2007 Suzuki Reno, 2007 Suzuki Forenza, and 2006 Suzuki Reno. However, it is still accessible from the selected car via links, so may be relevant.

Install the knee bolster with the bolts.
Tighten:

Tighten the driver's side knee bolster mounting bolts to 10 N.m (89 lb-in).

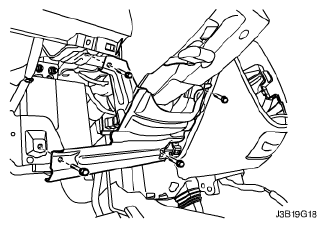

Fig 1: Identifying Driver Side Knee Bolster & Bolts
Courtesy of SUZUKI OF AMERICA CORP.
Install the instrument panel under cover.
Connect the hood release cable to the hood latch release handle.
Install the screws.

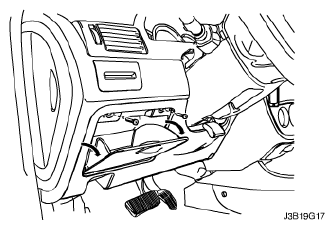

Fig 2: Identifying Instrument Panel Under Cover
Courtesy of SUZUKI OF AMERICA CORP.
