Windshield Washer Reservoir Removal and Installation: Installation

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 Suzuki Reno, 2008 Suzuki Forenza, 2007 Suzuki Reno, 2007 Suzuki Forenza, and 2006 Suzuki Reno. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Dissimilar metals in direct contact with each other may corrode rapidly. Make sure to use the correct fasteners to prevent premature corrosion.
  1. Install the reservoir with the bolts.

    Tighten:

    Tighten the washer fluid reservoir bolts to 8 N.m (71 lb-in).

  2. Connect the reservoir pump electrical connector.
  3. Connect the washer hose to the washer pump.

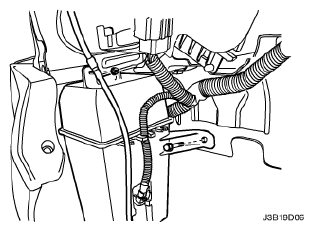

    Fig 1: Identifying Reservoir Pump Electrical Connector
    G04718173Courtesy of SUZUKI OF AMERICA CORP.
  4. Install the front wheel well splash shield with the bolts and the screws.

    Tighten:

    Tighten the front wheel well splash shield bolts to 1.5 N.m (13 lb-in).

  5. Install the front left wheel. Refer to WHEEL REMOVAL AND INSTALLATION .
  6. Connect the negative battery cable.

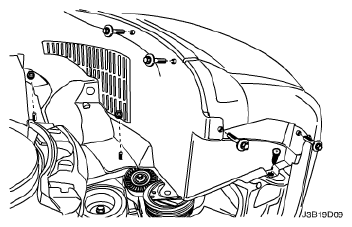

    Fig 2: Identifying Front Wheel Well Splash Shield, Bolts And Screws
    G04718172Courtesy of SUZUKI OF AMERICA CORP.
