Air Bag System Wiring Diagram
WARNING:
This page is about a different car, the 2006 Suzuki Reno and 2006 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.

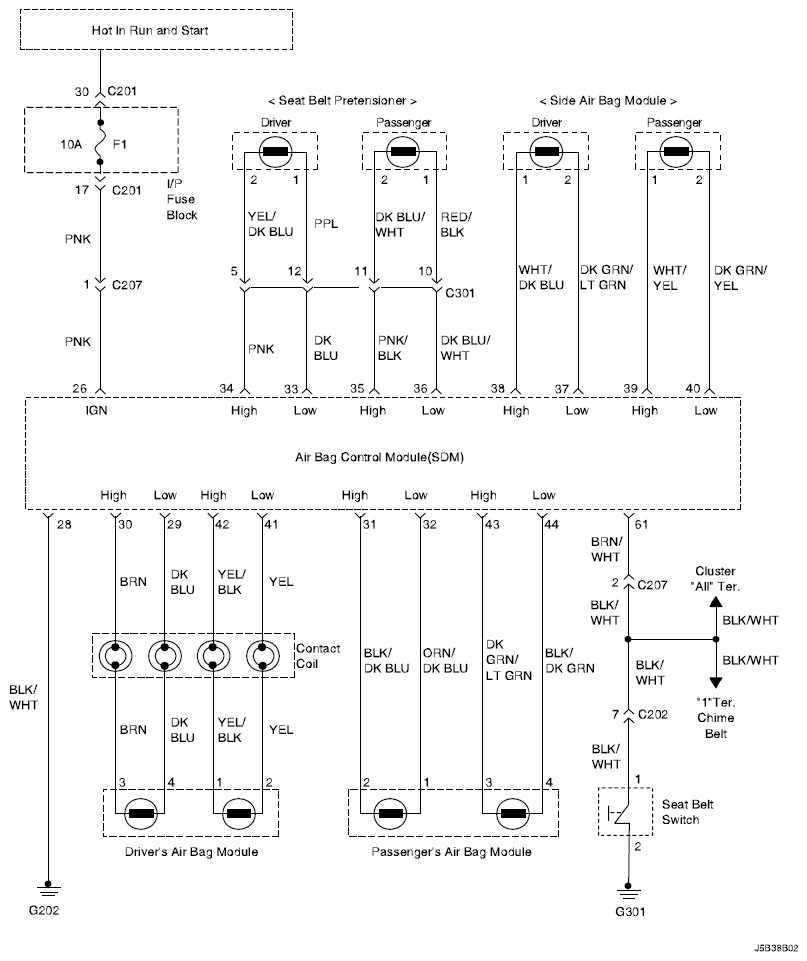

Fig 1: Air Bag System Wiring Diagram (1 Of 2)
Courtesy of SUZUKI OF AMERICA CORP.

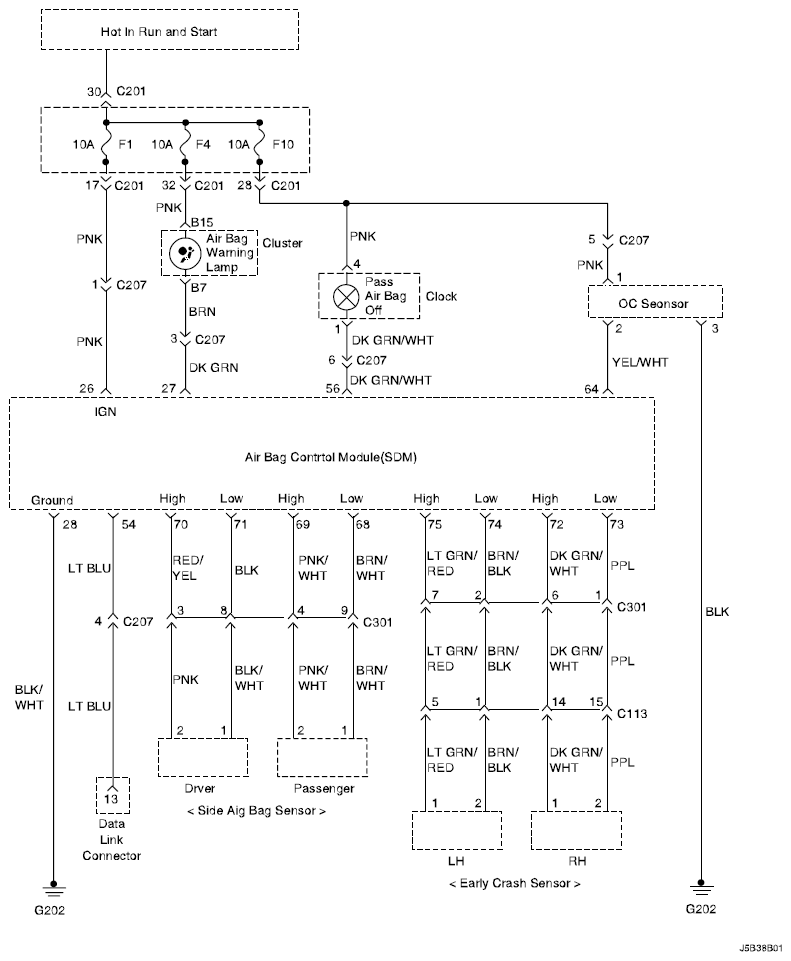

Fig 2: Air Bag System Wiring Diagram (2 Of 2)
Courtesy of SUZUKI OF AMERICA CORP.
