A/C Suction Hose Assembly Removal and Installation: Removal

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 Suzuki Reno, 2008 Suzuki Forenza, 2007 Suzuki Reno, 2007 Suzuki Forenza, and 2006 Suzuki Reno. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Discharge and recover the refrigerant. Refer to Discharging, Adding Oil, Evacuating, and Charging Procedures for A/C System .
Remove the air cleaner housing bolts and the air filter housing assembly.
Disconnect the electrical connector at the pressure transducer.
Remove the suction hose block retaining nut at the fire wall.
Cap the openings to the expansion valve to prevent contamination.

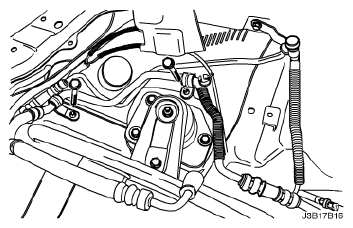

Fig 1: Identifying Suction Hose Block-To-Expansion Valve Retaining Nut
Courtesy of SUZUKI OF AMERICA CORP.
Remove the suction hose support clamp bolts.

Fig 2: Identifying Suction Hose Support Clamp Bolts
Courtesy of SUZUKI OF AMERICA CORP.
Remove the retaining nut from the hose connecting block and disconnect the air conditioning hose assembly connector block from the compressor.
Remove the A/C suction hose assembly.
Cap the openings to the compressor to prevent contamination.

Fig 3: Identifying Refrigerant Discharge Hose Block-To-Compressor Retaining Nut
Courtesy of SUZUKI OF AMERICA CORP.
