A/C Pressure Transducer Removal and Installation: Removal
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 Suzuki Reno, 2008 Suzuki Forenza, 2007 Suzuki Reno, 2007 Suzuki Forenza, and 2006 Suzuki Reno. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable.
- Recover the refrigerant. Refer to Discharging, Adding Oil, Evacuating, and Charging Procedures for A/C System .

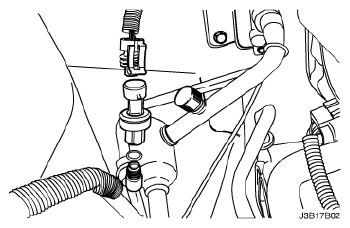

- Release the connector lock and pull the transducer wire connector out.
- Remove the transducer with a wrench.
- Discard the O-ring seal.
