Temperature Control Cable Removal and Installation: Removal

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 Suzuki Reno, 2008 Suzuki Forenza, 2007 Suzuki Reno, 2007 Suzuki Forenza, and 2006 Suzuki Reno. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the center molding. Refer to CENTER MOLDING REMOVAL AND INSTALLATION .
    Fig 1: Identifying Center Molding
    G04717743Courtesy of SUZUKI OF AMERICA CORP.
  3. Disconnect the mode control cable from the mode door.
  4. Disconnect the temperature control cable eyelet from the post on the controller.
  5. Pry off the clip of the temperature control cable.
    Fig 2: Identifying Mode Control Cable
    G04717744Courtesy of SUZUKI OF AMERICA CORP.
  6. Slide the cable eyelet off the post on the temperature door lever.
  7. Pry off the Clip of the temperature cable.

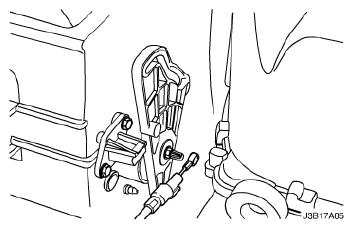

    Fig 3: Identifying Temperature Cable
    G04717745Courtesy of SUZUKI OF AMERICA CORP.
