Splash Shield Removal and Installation: Removal

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 Suzuki Reno, 2008 Suzuki Forenza, 2007 Suzuki Reno, 2007 Suzuki Forenza, and 2006 Suzuki Reno. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rotor. Refer to Rotor Removal and Installation .
  2. Remove the screws for the splash shield from the steering knuckle.
  3. Remove the splash shield.

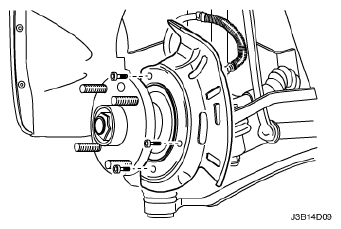

    Fig 1: Removing Screws Of Splash Shield
    G04717027Courtesy of SUZUKI OF AMERICA CORP.
