Splash Shield Removal and Installation: Installation
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 Suzuki Reno, 2008 Suzuki Forenza, 2007 Suzuki Reno, 2007 Suzuki Forenza, and 2006 Suzuki Reno. However, it is still accessible from the selected car via links, so may be relevant.

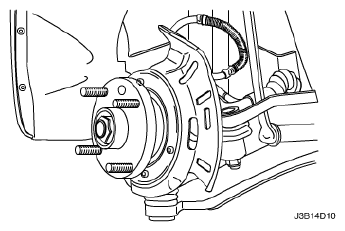

- Install the splash shield.
- Secure the splash shield to the steering knuckle with the screws.
Tighten:
Tighten the splash shield-to-steering knuckle screws to 4 N.m (35 lb-in).
- Install the rotor. Refer to Rotor Removal and Installation .
