Caliper Assembly Removal and Installation: Removal
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 Suzuki Reno, 2008 Suzuki Forenza, 2007 Suzuki Reno, 2007 Suzuki Forenza, and 2006 Suzuki Reno. However, it is still accessible from the selected car via links, so may be relevant.
- Raise and suitably support the vehicle.
- Mark the position of the front wheels relative to the wheel hubs and remove the wheels. Refer to WHEEL REMOVAL AND INSTALLATION .

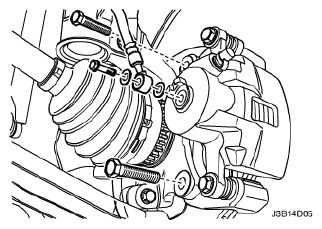

- Remove the bolt and the washers attaching the brake hose to the caliper.
- Disconnect the brake hose, and plug the openings in the caliper and the brake hose to prevent fluid loss and contamination.
- Remove the caliper mounting bolts from the steering knuckle, and remove the caliper assembly.
