Stoplamp Switch Removal and Installation: Installation

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 Suzuki Reno, 2008 Suzuki Forenza, 2007 Suzuki Reno, 2007 Suzuki Forenza, and 2006 Suzuki Reno. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place the stoplamp switch into the plug connector.
  2. Twist the stoplamp switch into the brake pedal bracket hole.
  3. Depress the brake pedal and pull the switch plunger to its maximum setting to adjust the switch.
  4. Release the plunger and pull up on the pedal.
  5. Connect the negative battery cable.

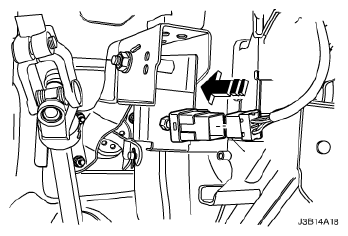

    Fig 1: Connecting Stoplamp Switch To Plug Connector
    G04716985Courtesy of SUZUKI OF AMERICA CORP.
