Brake System Location: Abs

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 Suzuki Reno, 2008 Suzuki Forenza, 2007 Suzuki Reno, 2007 Suzuki Forenza, and 2006 Suzuki Reno. However, it is still accessible from the selected car via links, so may be relevant.

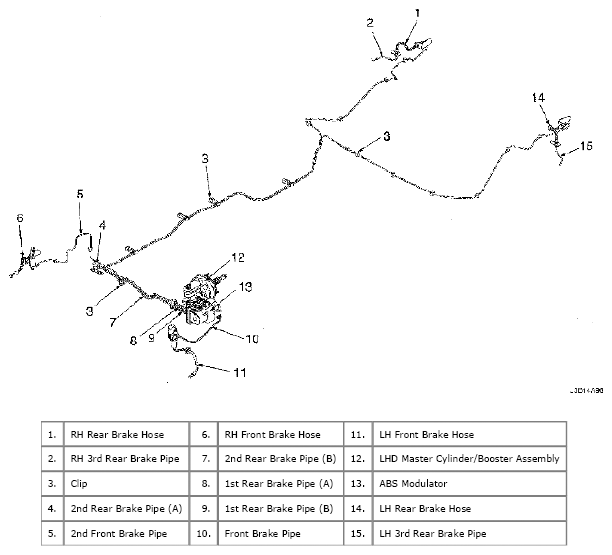

Fig 1: Identifying Brake System Component Location- ABS
G04716961Courtesy of SUZUKI OF AMERICA CORP.
