Drive Axle Assembly Removal and Installation: Removal

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 Suzuki Reno, 2008 Suzuki Forenza, 2007 Suzuki Reno, 2007 Suzuki Forenza, and 2006 Suzuki Reno. However, it is still accessible from the selected car via links, so may be relevant.

Raise and suitably support the vehicle.
Remove the wheels. Refer to WHEEL REMOVAL AND INSTALLATION .

Fig 1: Identifying Wheel Hub
Courtesy of SUZUKI OF AMERICA CORP.
Remove the axle shaft caulking nut. Discard the nut.

Fig 2: Identifying Axle Shaft Caulking Nut
Courtesy of SUZUKI OF AMERICA CORP.
Remove the lower ball joint pinch bolt and nut.
Separate the steering knuckle from the lower ball joint using the ball joint remover KM-507-B.
Remove the tie rod nut.

Fig 3: Identifying Ball Joint Remover KM-507-B
Courtesy of SUZUKI OF AMERICA CORP.
Separate the tie rod end using the ball joint remover KM-507-B.

Fig 4: Identifying Ball Joint Remover KM-507-B
Courtesy of SUZUKI OF AMERICA CORP.
Remove the damping block connection nut and bolt.
Remove the rear mounting bracket bolts and the bracket.

Fig 5: Identifying Rear Mounting Bracket Bolts
Courtesy of SUZUKI OF AMERICA CORP.
Push the drive axle shaft from the wheel hub.
Remove the drive axle from the transaxle using the axle shaft remover DW340-110.

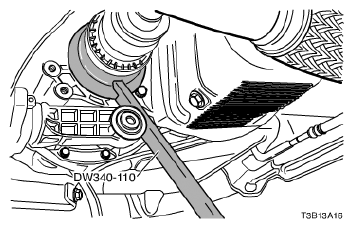

Fig 6: Identifying Axle Shaft Remover DW340-110
Courtesy of SUZUKI OF AMERICA CORP.
