Front Drive Axle Location

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 Suzuki Reno, 2008 Suzuki Forenza, 2007 Suzuki Reno, 2007 Suzuki Forenza, and 2006 Suzuki Reno. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Front Drive Axle Location
G04716896Courtesy of SUZUKI OF AMERICA CORP.

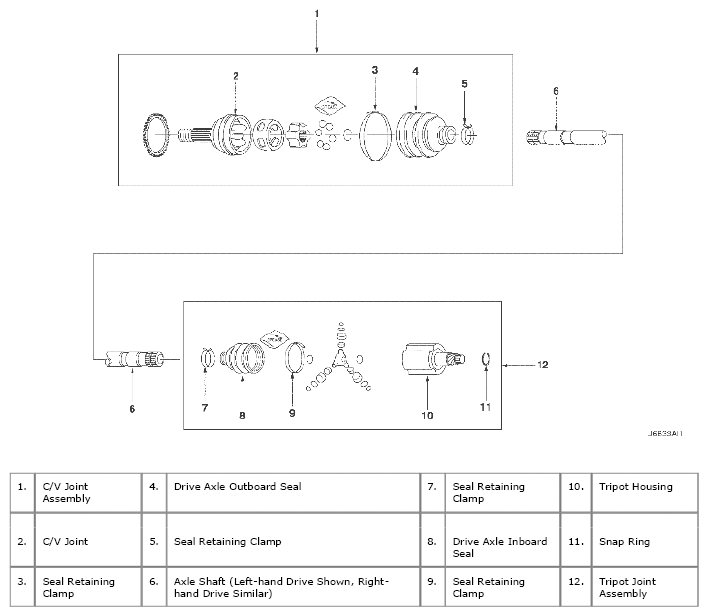

Fig 2: Exploded View Of Front Drive Axle
G04716897Courtesy of SUZUKI OF AMERICA CORP.
