Engine Mount Removal and Installation: Removal

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 Suzuki Reno, 2008 Suzuki Forenza, 2007 Suzuki Reno, 2007 Suzuki Forenza, and 2006 Suzuki Reno. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Support the engine assembly using the engine assembly support fixture DW110-060.
  3. Disconnect the Manifold Air Temperature (MAT) sensor connector.
  4. Disconnect the air cleaner outlet hose from the throttle body.
  5. Remove the air cleaner housing bolts.
  6. Remove the air cleaner housing.

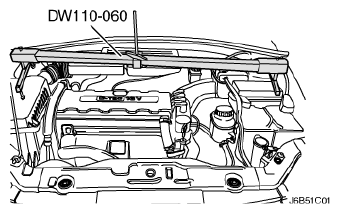

    Fig 1: Identifying Engine Assembly Support Fixture (Dw110-060)
    G04716432Courtesy of SUZUKI OF AMERICA CORP.
  7. Remove the right front splash shield.
  8. Remove the engine mount bracket retaining bolts.
  9. Remove the engine mount bracket.
  10. Remove the serpentine accessory drive belt. Refer to SERPENTINE ACCESSORY DRIVE BELT REMOVAL AND INSTALLATION .
    Fig 2: Identifying Engine Mount Bracket
    G04716433Courtesy of SUZUKI OF AMERICA CORP.
  11. Remove the front timing belt cover bolts.
  12. Align the crankshaft pulley timing mark with the pointer, and the camshaft gears with the timing marks on the rear cover, by turning the crankshaft gear bolt.
  13. Loosen the timing belt automatic tensioner bolt.
  14. Turn the hex-key tab to relieve belt tension.
  15. Remove the timing belt idler pulley bolt and nut.
  16. Remove the timing belt idler pulley.
  17. Remove the engine mount retaining bolts.
  18. Remove the engine mount.
    Fig 3: Identifying Front Timing Belt Cover
    G04716408Courtesy of SUZUKI OF AMERICA CORP.
