Speedometer Driven Gear Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the speedometer speed sensor electrical connector.

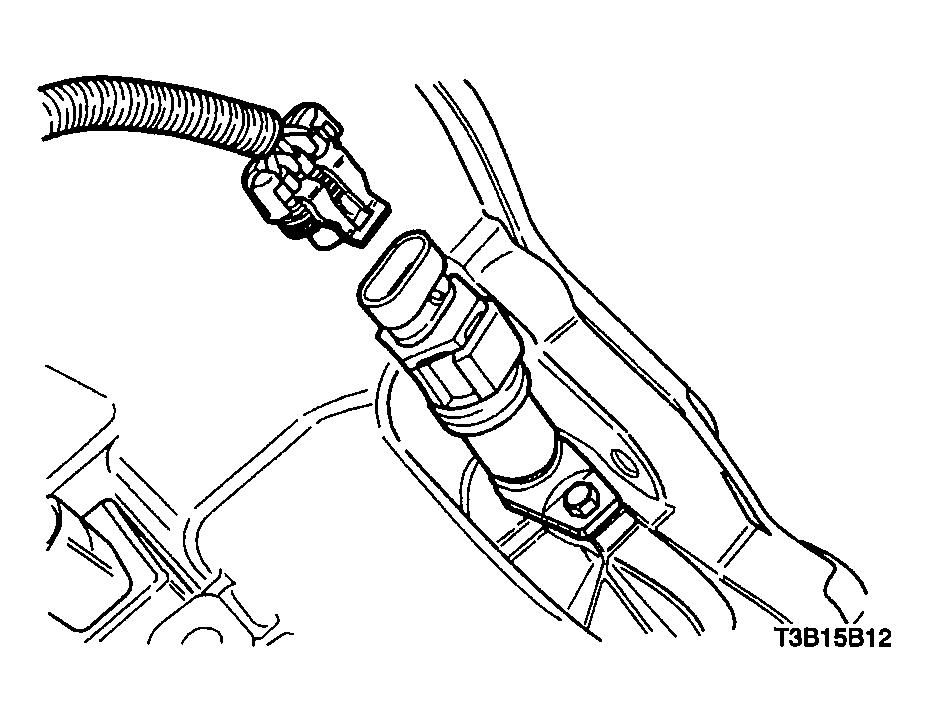

Fig 1: Disconnecting Speedometer Speed Sensor Electrical Connector
Courtesy of SUZUKI OF AMERICA CORP.
Remove the speedometer housing retaining bolt.
Remove the speedometer-driven gear and the speedometer housing.

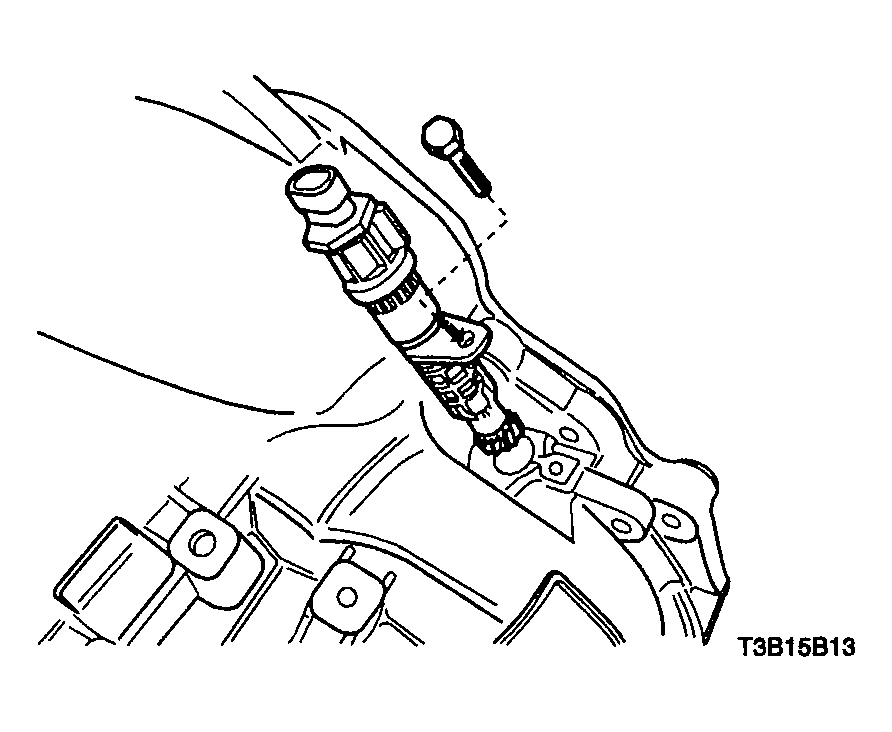

Fig 2: Removing Speedometer-Driven Gear And Speedometer Housing
Courtesy of SUZUKI OF AMERICA CORP.
