Speedometer Driven Gear Removal and Installation: Installation

WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.

Coat the O-ring with petroleum jelly.
Install the speedometer-driven gear and the speedometer housing.
Install the speedometer housing retaining bolt.
Tighten

Tighten the speedometer housing retaining bolt to 4 N.m (35 lb-in).

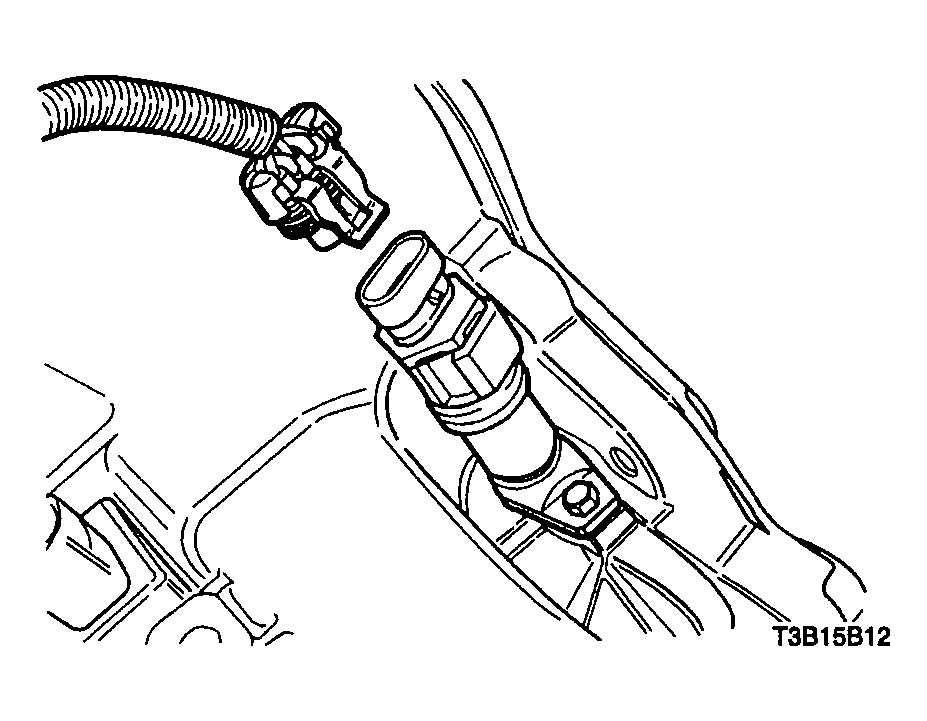

Fig 1: Installing Speedometer-Driven Gear And Speedometer Housing
Courtesy of SUZUKI OF AMERICA CORP.
Connect the speedometer speed sensor electrical connector.

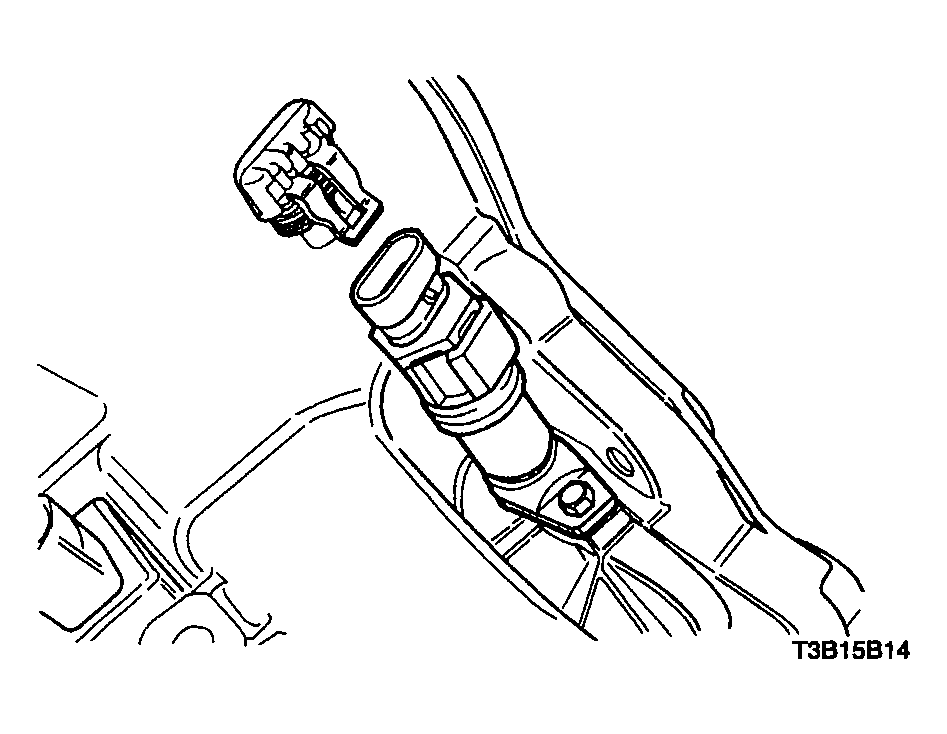

Fig 2: Connecting Speedometer Speed Sensor Electrical Connector
Courtesy of SUZUKI OF AMERICA CORP.
