Gearshift Lever Housing Removal and Installation: Installation
WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.

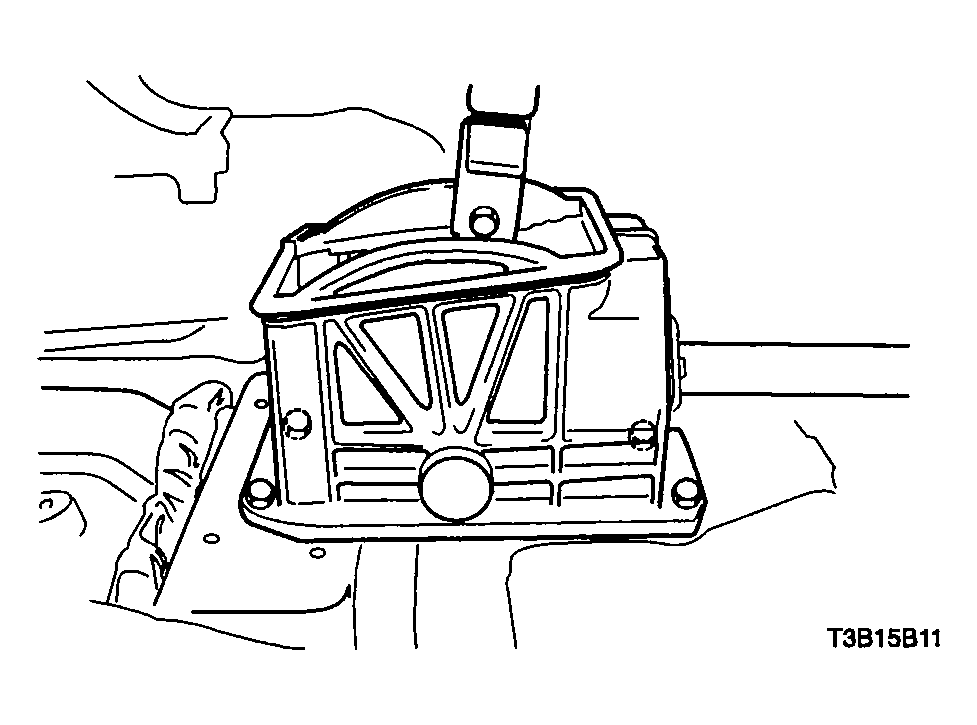

- Install the gearshift lever housing and the gearshift lever housing bolts.
Tighten
Tighten the gearshift housing bolts to 7 N.m (62 lb-in).
- Adjust the shift linkage.
- Install the console.
- Connect the negative battery cable.
Courtesy of SUZUKI OF AMERICA CORP.
