Drive Axle Seal Removal and Installation: Installation
WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.

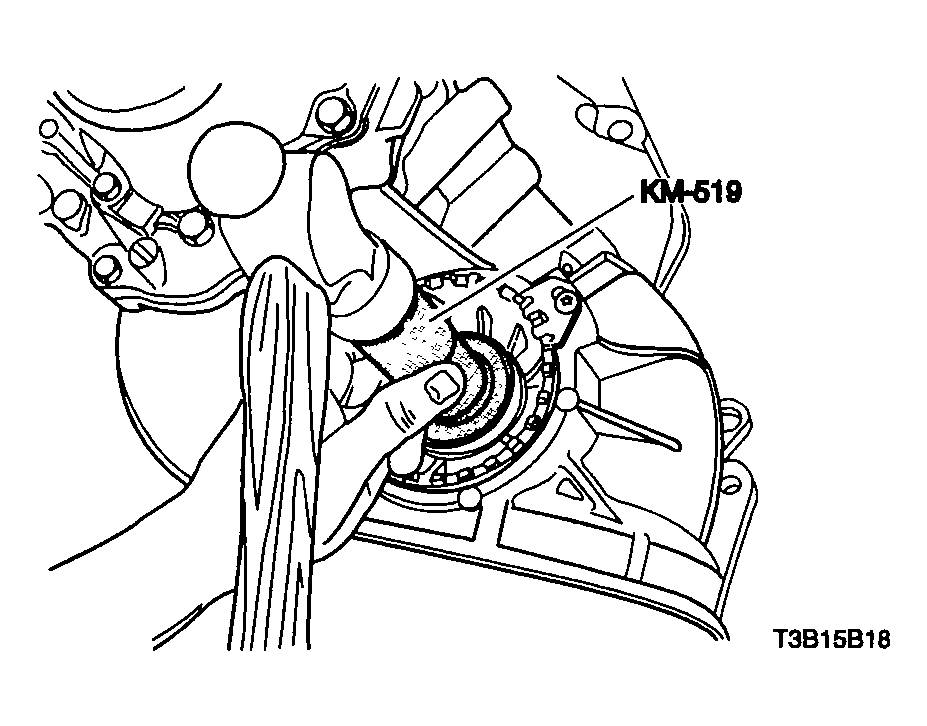

- Install the new drive axle seal using the ring installer KM-519 and a hammer.
- Coat the seal lip with the transaxle fluid.
- Install the drive axle. Refer to "DRIVE AXLE ASSEMBLY REMOVAL AND INSTALLATION: FOR MANUAL TRANSAXLE ".
