Park, Tail and License Lamps Circuit Diagram (For NOTCHBACK Model)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 Suzuki Reno, 2008 Suzuki Forenza, 2007 Suzuki Reno, 2007 Suzuki Forenza, and 2006 Suzuki Reno. However, it is still accessible from the selected car via links, so may be relevant.

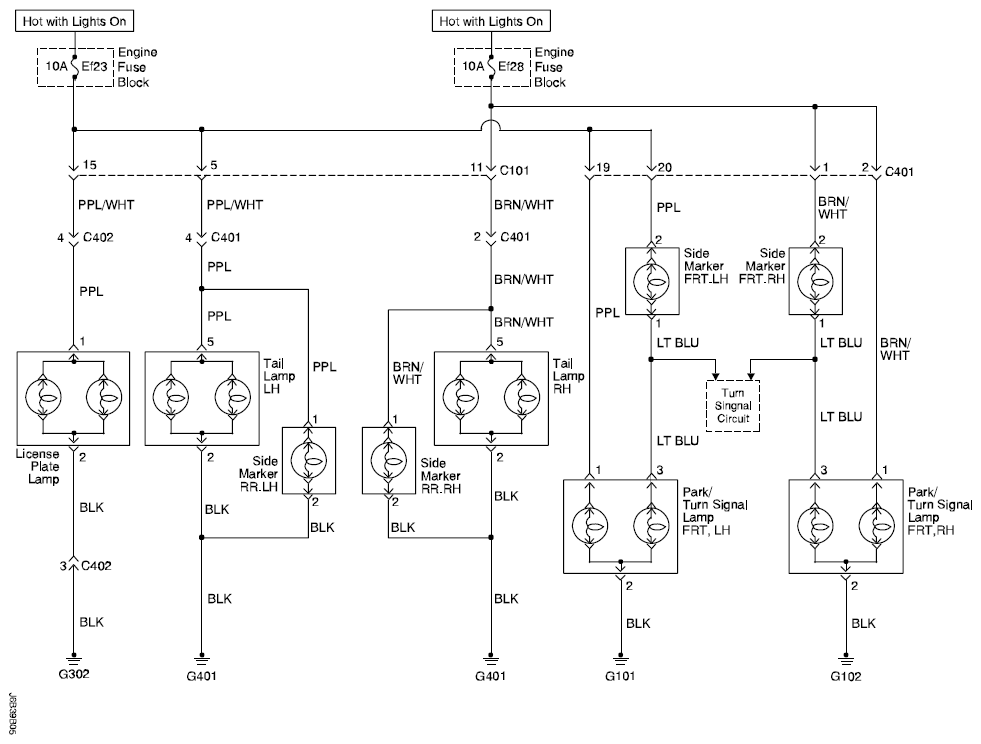

Fig 1: Park, Tail And License Lamps Circuit Diagram - For Notchback Model
G04718005Courtesy of SUZUKI OF AMERICA CORP.
