Headlamp Assembly Removal and Installation (For NOTCHBACK and STATION WAGON Model): Installation

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 Suzuki Reno, 2008 Suzuki Forenza, 2007 Suzuki Reno, 2007 Suzuki Forenza, and 2006 Suzuki Reno. However, it is still accessible from the selected car via links, so may be relevant.

Install the turn signal lamp.

Fig 1: Identifying Turn Signal Lamp
Courtesy of SUZUKI OF AMERICA CORP.
Install the headlamp high-beam bulb.
Connect the headlamp high-beam bulb connector.
Install the headlamp high-beam bulb clip.

Fig 2: Identifying Headlamp High-Beam Bulb Connector
Courtesy of SUZUKI OF AMERICA CORP.
Install the cap concealing the headlamp high-beam bulb.

Fig 3: Identifying Headlamp Beam Cap
Courtesy of SUZUKI OF AMERICA CORP.
Install the park lamp.

Fig 4: Identifying Park Lamp
Courtesy of SUZUKI OF AMERICA CORP.
Install the headlamp low-beam bulb.
Install the headlamp low-beam bulb clip.
Connect the headlamp low-beam bulb connectors.

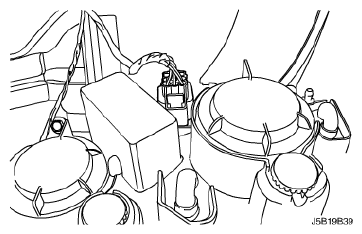

Fig 5: Identifying Headlamp Low-Beam Bulb Connector
Courtesy of SUZUKI OF AMERICA CORP.
Install the cap concealing the headlamp low-beam bulb.

Fig 6: Identifying Headlamp Low-Beam Bulb Cap
Courtesy of SUZUKI OF AMERICA CORP.
Connect the headlamp electrical connector.

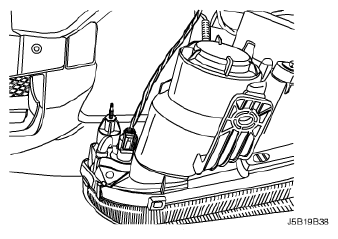

Fig 7: Identifying Headlamp Electrical Connector
Courtesy of SUZUKI OF AMERICA CORP.
Connect the turn signal lamp electrical connector.

Fig 8: Identifying Turn Signal Lamp Electrical Connector
Courtesy of SUZUKI OF AMERICA CORP.
Install the headlamp assembly.
Install the headlamp mounting bolts.
Tighten:

Tighten the headlamp mounting bolts to 4 N.m (35 lb-in).

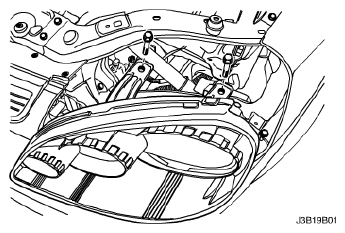

Fig 9: Identifying Headlamp Mounting Bolts
Courtesy of SUZUKI OF AMERICA CORP.
Install the headlamp mounting nut.
Tighten:

Tighten the headlamp mounting nut to 4 N.m (35 lb-in).
Connect the negative battery cable.

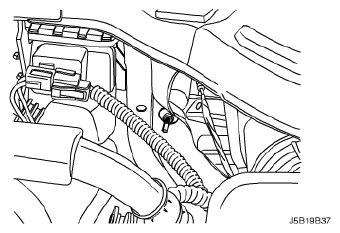

Fig 10: Identifying Headlamp Mounting Nut
