Center High Mount Stoplamp Removal and Installation (For STATION WAGON Model): Removal

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 Suzuki Reno, 2008 Suzuki Forenza, 2007 Suzuki Reno, 2007 Suzuki Forenza, and 2006 Suzuki Reno. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the tailgate trim cover screws.
  3. Remove the tailgate trim cover.
  4. Remove the tailgate garnish molding. Refer to TAILGATE LOWER GARNISH MOLDING REMOVAL AND INSTALLATION .
    Fig 1: Identifying Tailgate Trim Cover
    G04718084Courtesy of SUZUKI OF AMERICA CORP.
  5. Disconnect the electrical connector.
  6. Remove the rear wiper motor.
  7. Remove the license plate lamps bracket bolts and the nuts.
  8. Remove the license plate lamps bracket.
  9. Remove the station wagon door latch rod.

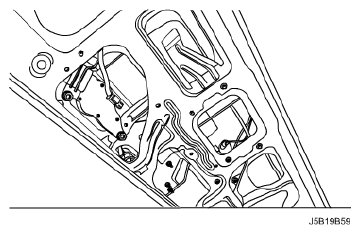

    Fig 2: Identifying Center High Mount Stoplamp Electrical Connector
    G04718085Courtesy of SUZUKI OF AMERICA CORP.
  10. Remove the center high mounted stoplamp nuts.
  11. Remove the center high mounted stoplamp.
    Fig 3: Identifying Center High Mount Stoplamp
