M/T: For NOTCHBACK and HATCHBACK Model

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 Suzuki Reno, 2008 Suzuki Forenza, 2007 Suzuki Reno, 2007 Suzuki Forenza, and 2006 Suzuki Reno. However, it is still accessible from the selected car via links, so may be relevant.

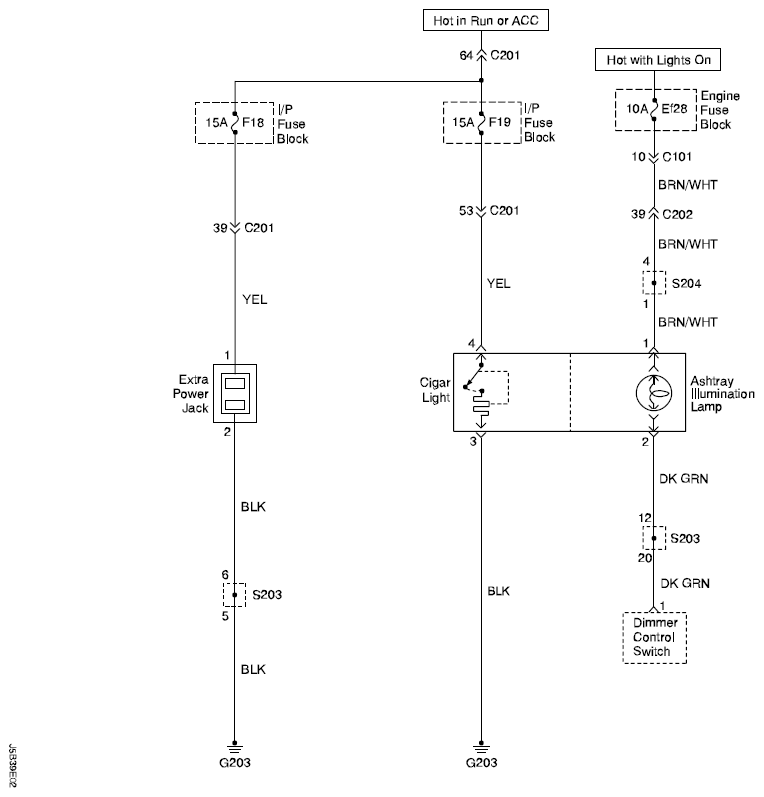

Fig 1: Cigar Lighter And Extra Power Jack Circuit Wiring Diagram - M/T For Notchback And Hatchback Model
G04718107Courtesy of SUZUKI OF AMERICA CORP.
