Instrument Cluster Removal and Installation: Installation

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 Suzuki Reno, 2008 Suzuki Forenza, 2007 Suzuki Reno, 2007 Suzuki Forenza, and 2006 Suzuki Reno. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connectors.
  2. Install the instrument cluster with the screws.

    Tighten:

    Tighten the instrument cluster screw to 4 N.m (35 lb-in).

  3. Install the instrument cluster trim panel.
  4. Connect the negative battery cable.

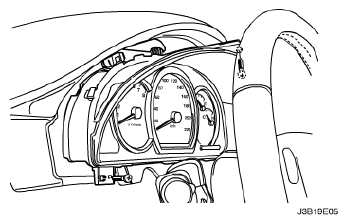

    Fig 1: Identifying Instrument Cluster And Screws
    G04718133Courtesy of SUZUKI OF AMERICA CORP.
