Ashtray Removal and Installation: Installation

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 Suzuki Reno, 2008 Suzuki Forenza, 2007 Suzuki Reno, 2007 Suzuki Forenza, and 2006 Suzuki Reno. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the ashtray housing with screws.
  2. Install the instrument panel center molding.

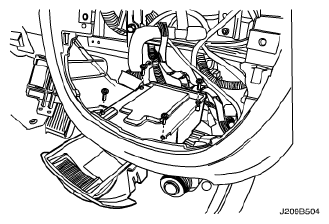

    Fig 1: Identifying Screws And Ashtray Housing
    G04718119Courtesy of SUZUKI OF AMERICA CORP.
