Formed Headliner Removal and Installation: Installation
WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.
- Recline both front seats.
- Install the headliner behind the seats around the doors.

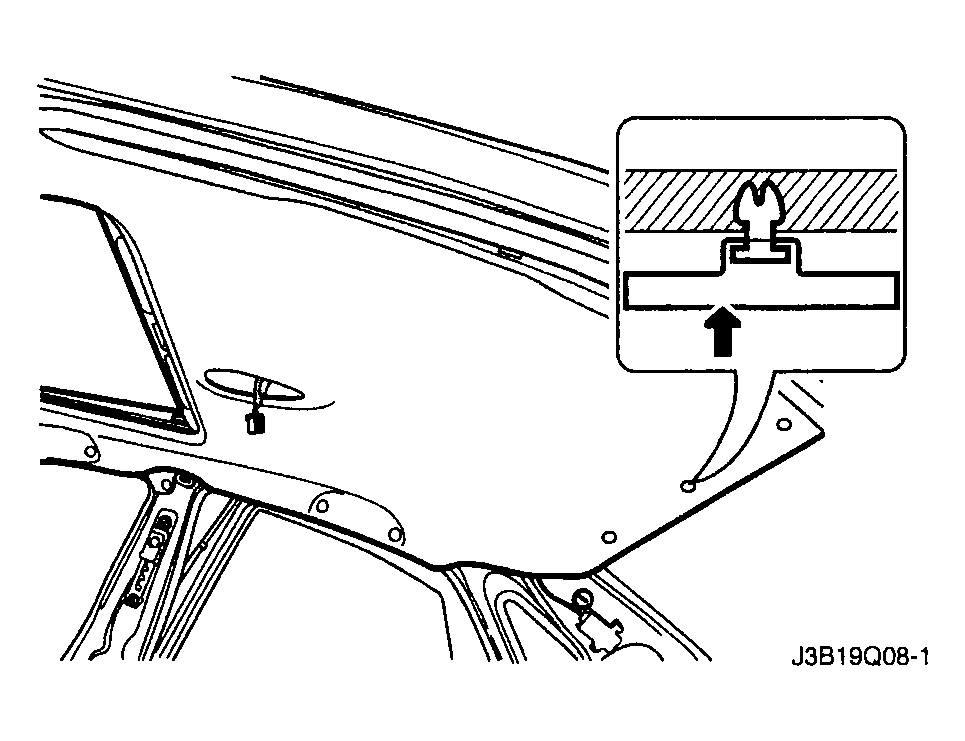

- Install the plastic retainers.
- Install the A-, B-, and C-pillar trim panels. Refer to "A-PILLAR TRIM PANEL REMOVAL AND INSTALLATION :", "UPPER B-PILLAR TRIM PANEL REMOVAL AND INSTALLATION :" and "C-PILLAR TRIM PANEL REMOVAL AND INSTALLATION :".
- Install the power sunroof control switch, if equipped. Refer to "POWER SUNROOF CONTROL SWITCH REMOVAL AND INSTALLATION :".
- Install the sun visors. Refer to "SUN VISORS WITH VANITY MIRROR DESCRIPTION :".
- Install the plastic retainers in the headliner on the driver's side.
- Install the passenger assist handles. Refer to "PASSENGER ASSIST HANDLES REMOVAL AND INSTALLATION :".
- Install the sunroof molding, if equipped.
- Connect the negative battery cable.
