Installation Notice

WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.

Tighten

Tighten the bearing plate bolts to 27 N.m (17 lb-ft).

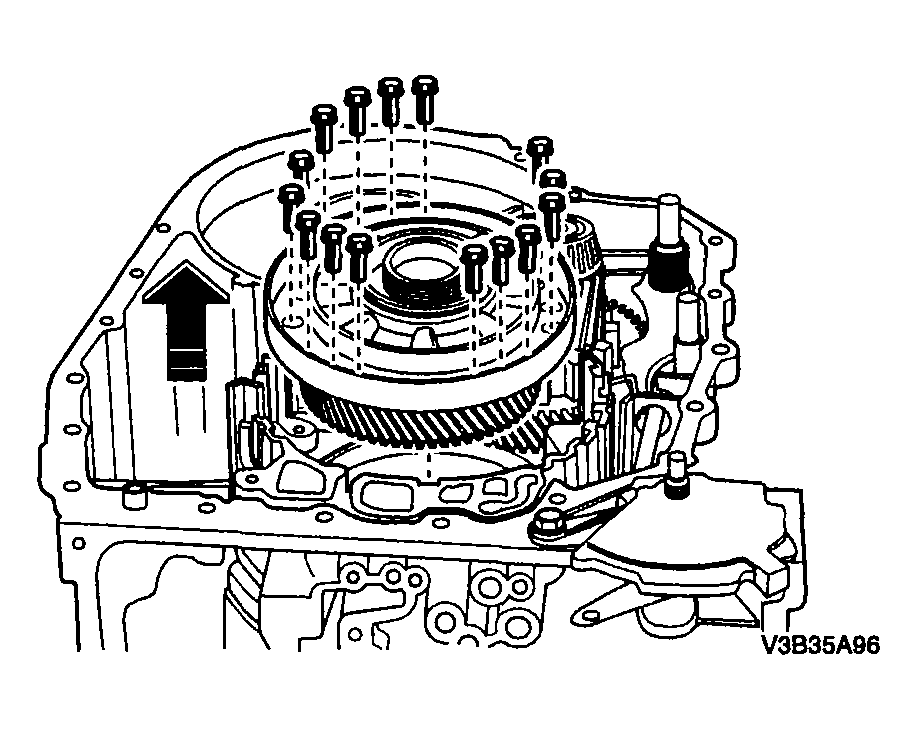

Fig 1: Removing Bearing Plate Bolts And Bearing Plate
G04103649Courtesy of SUZUKI OF AMERICA CORP.
