Pressure Control Solenoid Valve (EDS VALVE 3, 4, 5, 6)
WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.

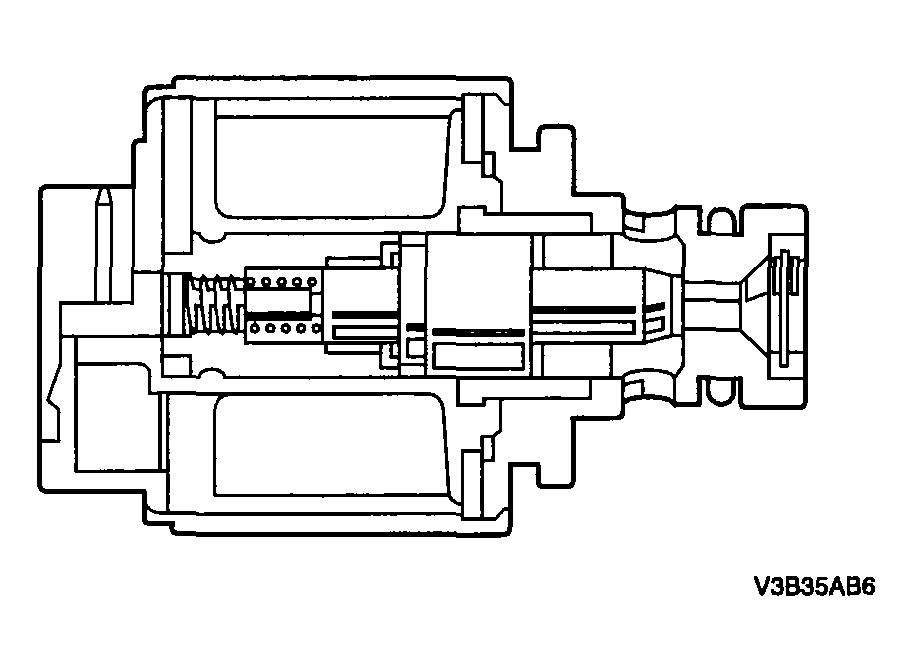

The pressure control valve (EDS valve 3, 4, 5, 6) is a precision electronic pressure regulator that controls the operation of the clutches, brakes and the lock-up clutch. The valve reduces the system pressure with which the downstream solenoid valves and electrical pressure regulating valves are supplied. It is possible to use smaller solenoid valves as a result. The EDS require a constant input pressure.
